04/02/2013Accelerated Code Cuts Time and Cost in Seismic Modeling
UC San Diego Team Achieves Petaflop-Level Earthquake Simulations on GPU-Powered Supercomputers
A team of researchers at the San Diego Supercomputer Center (SDSC) and the Department of Electronic and Computer Engineering at the University of California, San Diego, has developed a highly-scalable computer code that promises to dramatically cut both research times and energy costs in simulating seismic hazards throughout California and elsewhere.
The team, led by Yifeng Cui, a computational scientist at SDSC, developed the scalable GPU (graphical processing units) accelerated code for use in earthquake engineering and disaster management through regional earthquake simulations at the petascale level as part of a larger computational effort coordinated by the Southern California Earthquake Center (SCEC). San Diego State University (SDSU) is also part of this collaborative effort in pushing the envelope toward extreme-scale earthquake computing.
“The increased capability of GPUs, combined with the high-level GPU programming language CUDA, has provided tremendous horsepower required for acceleration of numerically intensive 3D simulation of earthquake ground motions,” said Cui, who recently presented the team’s new development at the NVIDIA 2013 GPU Technology Conference (GTC) in San Jose, Calif.
A technical paper based on this work will be presented June 5-7 at the 2013 International Conference on Computational Science Conference in Barcelona, Spain.
The accelerated code, which was done using GPUs as opposed to CPUs, or central processing units, is based on a widely-used wave propagation code called AWP-ODC, which stands for Anelastic Wave Propagation by Olsen, Day, and Cui. It was named after Kim Olsen and Steven Day, geological science professors at San Diego State University (SDSU), and SDSC’s Cui. The research team restructured the code to exploit high performance and throughput, memory locality, and overlapping of computation and communication, which made it possible to scale the code linearly to more than 8,000 NVIDIA Kepler GPU accelerators.
Sustained One Petaflop/s Performance
The team performed GPU-based benchmark simulations of the 5.4 magnitude earthquake that occurred in July 2008 below Chino Hills, near Los Angeles. Compute systems included Keeneland, managed by Georgia Tech, Oak Ridge National Laboratory (ORNL) and the National Institute for Computational Sciences (NICS), and also part of the National Science Foundation’s (NSF) eXtreme Science and Engineering Discovery Environment (XSEDE), and Blue Waters, based at the National Center for Supercomputing Applications (NCSA). Also used was the Titan supercomputer, based at ORNL and funded by the U.S. Department of Energy. Titan is equipped with Cray XK7 systems and NIVIDIA’s Tesla K20X GPU accelerators.

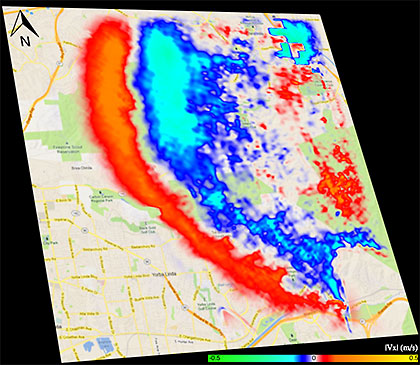

The image shows a snapshot of ground motion of the 2008 magnitude-5.4 Chino Hills earthquake in an east-to-west direction; the red-yellow and green-blue colors depict the amplitude of shaking. The simulation indicates that small-scale heterogeneities (causing the highly irregular pattern of shaking in the image) may significantly affect ground motion in geologic basins. Simulation by Efecan Poyraz/UC San Diego and Kim Olsen/SDSU. Visualization by Efecan Poyraz; map image courtesy of Google.
The benchmarks, run on Titan, showed a five-fold speedup over the heavily optimized CPU code on the same system, and a sustained performance of one petaflop per second (one quadrillion calculations per second) on the tested system. A previous benchmark of the AWP-ODC code reached only 200 teraflops (trillions of calculations per second) of sustained performance.
By delivering a significantly higher level of computational power, researchers can provide more accurate earthquake predictions with increased physical reality and resolution, with the potential of saving lives and minimizing property damage.
“This is an impressive achievement that has made petascale-level computing a reality for us, opening up some new and really interesting possibilities for earthquake research,” said Thomas Jordan, director of SCEC, which has been collaborating with UC San Diego and SDSU researchers on this and other seismic research projects, such as the simulation of a magnitude 8.0 earthquake, the largest ever simulation to-date.
“Substantially faster and more energy-efficient earthquake codes are urgently needed for improved seismic hazard evaluation,” said Cui, citing the recent destructive earthquakes in China, Haiti, Chile, New Zealand, and Japan.
While the GPU-based AWP-ODC code is already in research use, further enhancements are being planned for use on hybrid heterogeneous architectures such as Titan and Blue Waters.
“One goal going forward is to use this code to calculate an improved probabilistic seismic hazard forecast for the California region under a collaborative effort coordinated by SCEC,” said Cui. “Our ultimate goal is to support development of a CyberShake model that can assimilate information during earthquake cascades so we can improve our operational forecasting and early warning systems.”
CyberShake is a SCEC project focused on developing new approaches to performing seismic hazard analyses using 3D waveform modeling. The GPU-based code has potential to save hundreds of millions of CPU-hours required to complete statewide seismic hazard map calculations in planning.
Additional members on the UC San Diego research team include Jun Zhou and Efecan Poyraz, graduate students with the university’s Department of Electrical and Computer Engineering (Zhou devoted his graduate research to this development work); SDSC researcher Dong Ju Choi; and Clark C. Guest, an associate professor of electrical and computer engineering at UC San Diego’s Jacobs School of Engineering.
Compute resources used for this research are supported by XSEDE under NSF grant number OCI-1053575, while additional funding for research was provided through XSEDE’s Extended Collaborative Support Service (ECSS) program.
“ECSS exists for exactly this reason, to help a research team make significant performance gains and take their simulations to the next level,” said Nancy Wilkins-Diehr, co-director of the ECSS program and SDSC’s associate director. “We’re very pleased with the results we were able to achieve for PI Thomas Jordan and his team. ECSS projects are typically conducted over several months to up to one year. This type of targeted support may be requested by anyone through the XSEDE allocations process.”
Additional funding came from the UC San Diego Graduate Program, Petascale Research in Earthquake System Science on Blue Waters PRAC (Petascale Computing Resource Allocation) under NSF award number OCI-0832698, and SCEC’s core program of 2012. This research also received support under the following NSF Geoinformatics awards: Community Computational Platforms for Developing Three-Dimensional Models of Earth Structure (EAR-1226343) and Software Environment for Integrated Seismic Modeling (OCI-1148493). Certain computing resources, including Titan, were also provided by the Innovative and Novel Computational Impact on Theory and Experiment (INCITE) program, supported by the Office of Science of the Department of Energy under contract DE-AC05-00OR22725.
Researchers acknowledge the following individuals for their contributions: Kim Olsen and Steven Day of SDSU; Amit Chourasia of SDSC (visualizations); Jeffrey Vetter of ORNL and his Keeneland team; D.K. Panda of Ohio State University and his MVAPICH compiler team; Carl Ponder and Roy Kim of NVIDIA; and Philip Maechling and Thomas Jordan of SCEC.
As an Organized Research Unit of UC San Diego, SDSC is considered a leader in data-intensive computing and cyberinfrastructure, providing resources, services, and expertise to the national research community, including industry and academia. Cyberinfrastructure refers to an accessible, integrated network of computer-based resources and expertise, focused on accelerating scientific inquiry and discovery. SDSC supports hundreds of multidisciplinary programs spanning a wide variety of domains, from earth sciences and biology to astrophysics, bioinformatics, and health IT. With its two newest supercomputer systems, Trestles and Gordon, SDSC is a partner in XSEDE (Extreme Science and Engineering Discovery Environment), the most advanced collection of integrated digital resources and services in the world.
